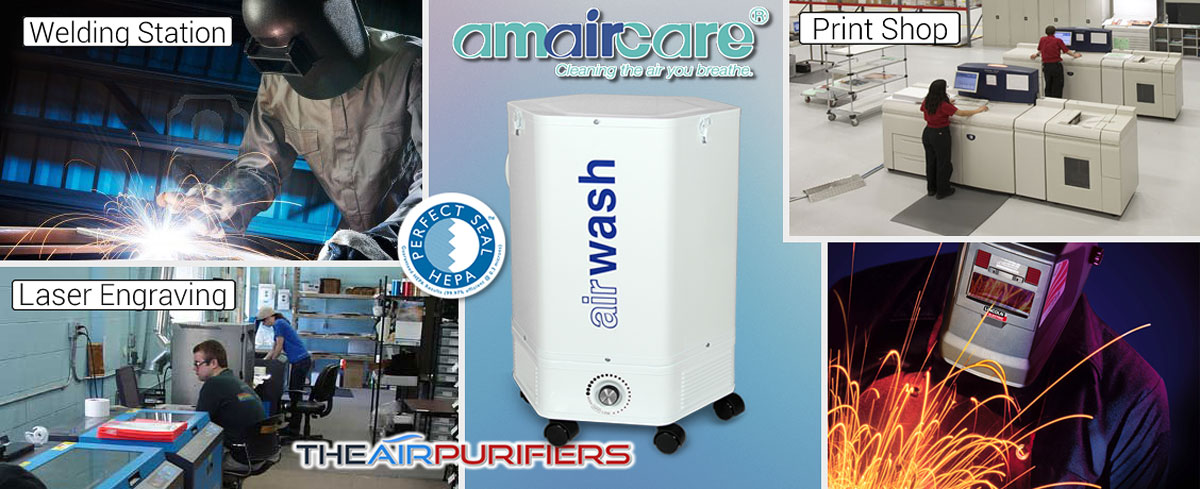

Amaircare 4000 VOC CHEM employs the Amaircare ULTRA VOC canister making Amaircare 4000 VOC CHEM an excellent VOCs and Toxic Chemical extraction air purifier for Print shops, Laser engraving shops, soldering and welding stations.
Amaircare 4000 VOC CHEM in STOCK
Warning: Last items in stock!
Amaircare 4000 VOC CHEM connects to the exhaust vent of a plotter, a printer or to a hood of a soldering or welding station using the 6-inch diameter flexible or rigid hose. The Amaircare 4000 VOC CHEM creates a negative pressure that draws the VOCs, toxic fumes and gases created in the process through the air filtration system of the unit. The polluted air passes through the oversize carbon canister filled with 30 lb. of granulated carbon, where it is cleaned of all harmful VOCs, toxic fumes and gases. The purified air then vented out back into the workplace area through louvered vents located on four sides of the lower deck of the air purifier.
Amaircare 4000 VOC CHEM air purifier should be used to maintain Clean, Safe and Healthy working environment in:
Use AMAIRCARE 4000 HEPA CHEM air purifier instead of the Amaircare 4000 VOC CHEM to ensure effective removal of Solid Airborne contaminants (particulates) along with Toxic chemicals and Gases.
The Amaircare 4000 VOC CHEM employs a 2-Stage air filtration system.
Pre-filter (1st Stage)
As a first stage of the air filtration system Amaircare 4000 VOC CHEM employs the foam pre-filter. The foam pre-filter wraps around the Carbon canister. It captures large dust and dirt particles.
The foam pre-filter is washable and re-usable.
The foam pre-filter's lifetime - 12 months.
One replacement foam pre-filter is included with Amaircare 4000 VOC CHEM Ultra Annual Filter Kit.
ULTRA VOC Filter Canister (2nd Stage)
The ULTRA VOC canister offers a massive amount (30 lbs. / 13.6 kg) of 100% activated granulated carbon adsorbent. Such a huge amount of adsorbent combined with an extended dwelling time in 2.5-inch deep carbon bed results in the unparalleled air filtration efficiency and adsorption capacity in removal of most hazardous VOCs, dangerous chemical substances, toxic fumes and most other chemicals in high concentrations that are produced as a by-product by laser engraving, printing, welding, soldering process, etc.
Specialty adsorbent blend for targeting specific specific chemicals is available on demand at extra cost.
A single ULTRA VOC canister is included with Amaircare 4000 VOC CHEM Ultra Annual Filter Kit
Vacuum Seal Gasket
There is a single O-ring gasket used to vacuum seal the Easy-Twist ULTRA VOC canister.
The vacuum seal gasket perfectly seals the filter chamber and helps completely eliminate the polluted air by-pass.
The Amaircare 4000 VOC CHEM commercial air purifier employs a powerful thermally protected insulated motor with centrifugal fan rated at 300 CFM (delivered air flow).
The one-piece Motor/Fan assembly is factory balanced to guarantee a vibration and noise-free operation.
The motor is rated for a long continuous operation at high RPM and is run tested for 50,000 hours of continuous operation.
The level of noise ranges from 37 dB on Low to 67 dB on High at 6' distance.
The Amaircare 4000 VOC CHEM air purifier employs the variable rotary speed control with On/Off positions.
It offers the countless number of speed settings and allows for a gradual change of delivered air flow from 50 to 300 CFM to meet a specific air quality requirement.
Amaircare 4000 VOC CHEM features durable, impact resistant the all steel housing design of Hexagonal shape made of 24 gauge cold rolled steel.
The 360° fully enclosed housing provides an effective protection of filters from possible damage. The polluted air intake with 6-inch diameter duct collar is located at the upper deck of the unit. It allows for easy connection to the exhaust vent of a plotter, printer or other devices using a flexible or rigid hose.
The appliance quality baked-on powder coating does not produce any toxic off gassing and is available in a clean looking White glossy color.
The purified air is vented out through clean air outlets / vents located on 4 out of 6 sides of the lower deck of the air purifier.
The Amaircare 4000 VOC CHEM air purifier features the top panel with latches. It allows for a quick access to the filter compartment and makes the filter replacing procedure simple and easy.
Amaircare 4000 VOC CHEM air purifier comes from the factory:
The Amaircare Manufacturer's warranty on 4000 VOC CHEM air purifier includes:
Amaircare 4000 VOC CHEM air purifier ships Free by UPS or FedEx Ground delivery services in Canada and the Continental USA.
The alternative delivery services are also available at a cost (will be displayed in the shopping cart).
There are no additional charges or extra fees related to the border crossing shipments (if involved) of Amaircare 4000 VOC CHEM air purifier to all US and Canadian customers.
The unit has to be inspected for possible damages in transit upon arrival. If the problem is found, it has to be reported to the driver and recorded in the Delivery Receipt. After that, the problem has to be reported to our company's customer service.
The damaged or defective units promptly and properly reported to our company will be replaced with new one Free of charge at the earliest possible time.
|Air Purifier Type||Commercial|
|Width||15.75" (40 cm)|
|Depth||15.75" (40 cm)|
|Height||23 (58.5 cm)|
|Diameter||16" (40.6 cm) Hexagonal|
|Weight||55 lbs. (25 kg)|
|Filter Change Monitor||NO|
|Number of Speed Settings||Mutiple|
|Air Flow Rating, CFM||450|
|Clean Air Delivery Rate (CADR), CFM||50 - Low / 300 - High|
|Maximum Cleaning Area w/ 8 ft. ceiling||2250 @ 1 ACH|
|Recommended Cleaning Area w/ 8 ft. ceiling||1125 @ 2 ACH|
|Level of Noise, dB||38 (Low) - 67 (High) @ 6 feet|
|Type of Adsorbent||100% Carbon|
|Amount of Adsorbent||30 lbs.|
|Carbon Filter Lifetime||1-2 years|
|Ultraviolet (UV) Bulb||No|
|Air Intake||6-inch Diam.|
|Air Outlet||4 Vents|
|Power Supply||120V/60Hz (220V-240V/50Hz Optional)|
|Power Consumption, Watts||120 - High|
|Wall Mounted Option||No|
|Manufacturer's Warranty, Years||5 - Motor/Fan / 1 - Other|
